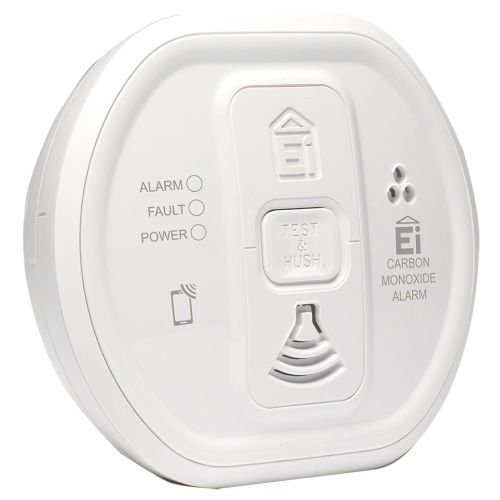

The Ei208 Carbon Monoxide Alarm is supplied with a powered-for-life sealed Lithium battery. It contains a high performance, proven 10 year electrochemical CO sensor to detect the presence of toxic levels of Carbon Monoxide (CO). Each sensor is individually calibrated and tested in Carbon Monoxide gas to ensure accuracy.
When the Alarm detects potentially dangerous levels of CO, the red LED flashes and if the CO persists the alarm will sound. The rate of flashing of the red LED indicates the level of CO. The higher the level of CO detected, the sooner the alarm will sound.
The AudioLINK feature available in the Ei208 facilitates acoustic download of the Alarm parameters and status using the Ei Electronics AudioLINK app.
The Ei208 self-checks its sensor, battery voltage and internal circuitry regularly. Any fault condition will be indicated by a combination of visual and audible indicators (ie yellow flashes and beeps). The Alarm also has an “End of Life” indicator (audible and visual) which will notify the user when the Alarm needs replacing at the end of its 10 year operational life.
The memory feature allows an Alarm that has previously activated to be easily identified (as the red LED will continue to flash for 24hrs after the event or afterwards when you press the Test button).
The Alarm is supplied with a twist-on mounting base which as multiple fixing points so it can be easily secured to a ceiling or wall. Free standing install is also possible.
Technical Specification
Sensor: | Electrochemical |
Product life: | 10 years |
Supply voltage: | 10 year Lithium battery (non-replaceable) |
Sound level: | 85 dB(A) at 3m |
Button test: | Checks sensors, electronics and horn |
Silence function: | Silences alarm once for 4 minutes if <150ppm |
Data download: | Via the AudioLINK app |
Visual indicators: |
Green LED: Button Test
Red LED: Pre-alarm, alarm, hush mode and memory
Yellow LED: Fault
|
Memory feature: | Records last alarm event |
End of Life: |
Audible and visual indicators
(3 beeps with 3 yellow flashes per minute)
|
Normal Operating and Storage Temperature Range: | -10°C to 40°C |
Normal Operating and Storage Humidity Range: | 15 % to 95 % Relative Humidity (non-condensing) |
Fixing: | Screw fixings and mounting plate supplied |
Dimensions: |
Product: 120mm x 40mm x 105mm
Packaged: 120mm x 50mm x 135mm
|
Weight: |
Product only: 165gr
Product + Packaging: 200gr
|
Warranty: | 5 years |
