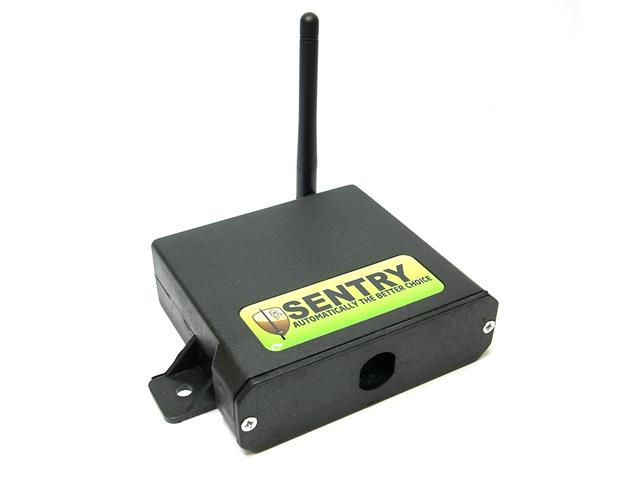

SENTRY GSM Communicator

In stock

SENTRY GSM Communicator

CODE:
ME GSM-01
The GSM Communicator provides a stable and versatile platform for customers wishing to add remote switching and monitoring functionality to a wide variety of applications. The GSM Communicator supports both SMS and GPRS communication options and offers multiple input, as well as output peripherals.
65.00 List price: 80.00
You save: 15.00 (19%)

SENTRY- Automatically the Better Choice

SENTRY GSM Communicator



The SENTRY GSM Communicator is a world leading product that provides a stable and versatile platform for customers wishing to add remote switching and monitoring functionality to a wide variety of applications.

SENTRY GSM Communicator with SMS and GPRS Functionality:

The SENTRY GSM Communicator supports both SMS and GPRS communication options and offers multiple input, as well as output peripherals.

The device may be used as a stand-alone unit that interfaces to one, or many cell phones. Alternatively, the Sentry GSM Communicator may be used in conjunction with the Sentry GPRS server infrastructure, offering a full remote management solution that is robust, as well as cost-effective. The device contains a unique "virtual wallet" feature that allows credits to be loaded onto the device. When an input pulse is detected, the unit determines if credit is available. If so, the pulse is reproduced on an output port and a credit is deducted.

Features:

  • SIM pin lock
  • GPRS with SMS fail-over or SMS only
  • Application server (GPRS, SMS-to-TCP/IP) with management software
  • Intuitive application software
  • 3 time-settable modes available per output port (latch, toggle, pulse)
  • Output port activation via SMS or missed call (optional confirmation via SMS)
  • Up to 2 master (can alter settings remotely) users and 100 regular users
  • User-settable input activation trigger-duration
  • Input activation on high or low trigger
  • SMS alerts sent concurrently to up to 3 destinations

Specification:

  • 2 x relay outputs (5A, 220V AC, 28V DC)
  • 1 x digital output (0V low, 5V high)
  • 2 x digital inputs (0V 24V DC)
  • Supply requirements: (12V, 500mA)
  • External UART (3.3V or 12V)
  • External I2C bus
  • Real time clock/calendar with power backup
  • Dual SIM
  • Status indication LED (Tri-colour)
  • Quad-band GSM module (Class 10 GPRS)
  • External SMA connector
  • Low-power standby mode



The SENTRY GSM Communicator is recognised as a world leader in GSM systems. SENTRY GSM Communicators are manufactured by Electronic Automation leader Martin Electronics.

To view other innovative SENTRY Automation products Click Here

Technical Specifications:



Hardware:
+12V Input Voltage
2 x Relay Outputs
1 x Digital Output
2 x Digital Inputs
Dual SIM
and MORE...

Software
SIM Lock
GPRS with SMS backup
SMS only
TCP/IP Management
software
Store 100 user numbers
and MORE...

Nice system, put one on my boat recently. have it connected to a water flood detector in case of excessive rain as the boat is on the harbour most of the year. When water is detected i get alerted on my cell phone. Also wired an input across a couple of magnetic door contacts in the event of a break-in. So simple its great.
